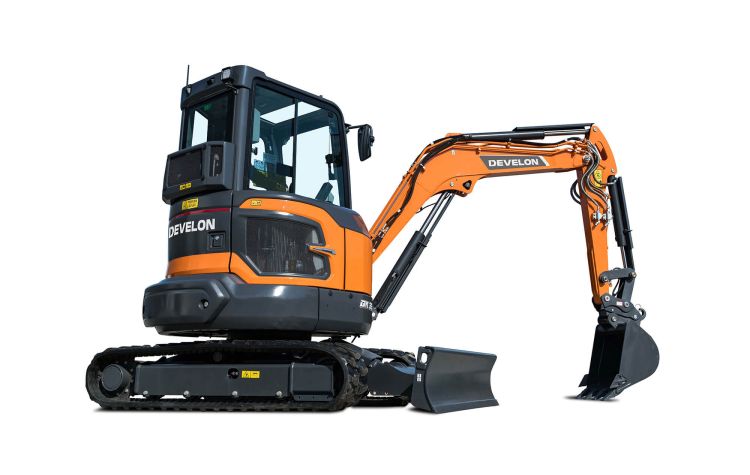

DevelonDX35Z
The DX35Z is equipped with optimal systems suitable for various applications from pipe work to landscaping. The compactness of the machine allows operations within confined spaces as well as operations in restricted areas around buildings. The accurate, smooth and poweful digging performance maximizes the productivity.
- Compactness - zero tail swing design
- Comfort - spacious and comfortable cab
- Performance - powerful digging performance
- Reliability - long life components
- Maintenance - easy service accessibility
The cab structure is designed to provide the operator with excellent comfort and all round visibility, whilst maintaining the minimum working radius. The combination of the new generation eco-friendly engines and the advanced hydraulic systems result in an excellent digging performance, high efficiency and low noise operations. The use of high performance materials combined with new methods of structural stress analysis leads to increased component life expectancy and durability of the compact excavator. This combination of increased component life expectancy, easy service accessibility and high productivity reduces the cost of ownership of the compact excavator for any kind of customer.
Specifications
| Operating weight (canopy / cab) | 3560 / 3660 kg |
| Engine (SAE J1349) | 24.8hp |
| Width | 1700 mm |
| Max. reach ground level (short / long arm) | 5090 / 5200 mm |
| Max. digging depth (short / long arm) | 3025 / 3155 mm |
| Max. dumping height (short / long arm) | 3350 / 3410 mm |
| Max. digging force - bucket | 29.5 kN |
| Max. digging force - arm (short / long arm) | 20.9 / 19.2 kN |
| Travel speed | 2.6 / 4.6 km/h |
