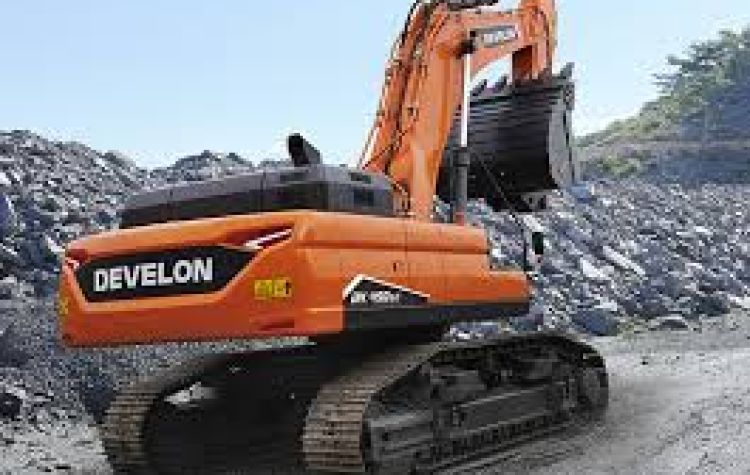

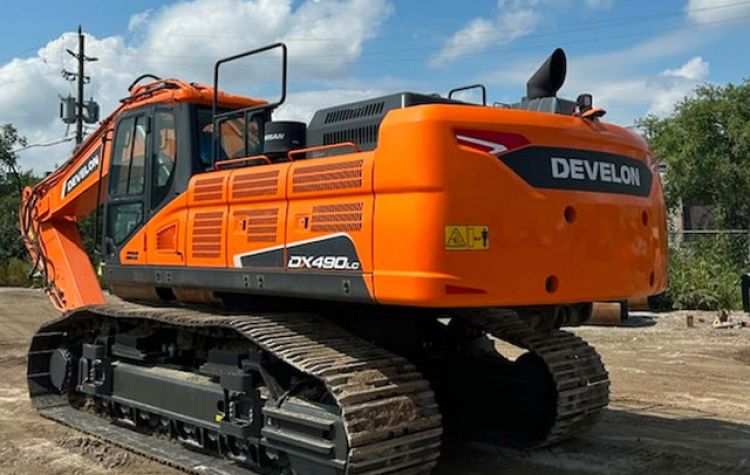

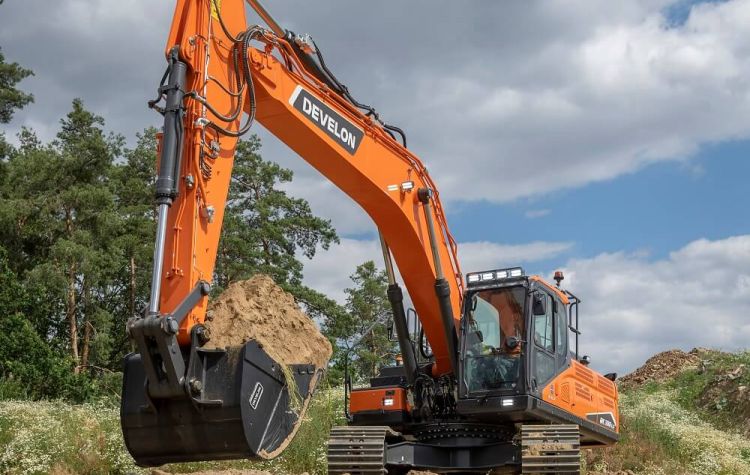

DevelonDX490LC-7
Meet the new generation of Develon Machines.
Lift your business to the next level with the DX490LC-7 Develon Excavators.
The high productivity and low cost of ownership- Delivers higher productivity and reduced fuel consumption in an efficient and comfortable work environment.
Reliability- Reinforced castings and forged steel pivot points and reinforced heavy duty arm and boom to withstand high impact materials. Large robust boom and arm cyclinders for smooth, powerful operation. Advanced pin & bushing technology.
Special Applications- Our long reach machines with a reach of 16 & 19.6 meters are ideally suited for special applications.
Specifications
| Operating weight | 50400kg |
| Engine | 394hp |
| Main pumps max flow | 2 x 390 l/m |
| Number of cylinders | 6 |
| Travel speed | 3.2 / 5.6 km/h |
| Maximum traction | 45.7 ton |
| Buckets | 1.71 – 3.6m3 |
| Sound level (internal / external) | 71 dB(A) - 106 dB(A) |
| Overall width | 3340 / 2990 mm (Narrow) |
| Overall height (Std Front) | 3705 mm |
| Overall length (Std Front) | 12230 mm |
| Tail swing radius | 3800 mm |
| Bucket digging force | 29t |
| Arm digging force (Std Front) | 24.4 t |
| Max. digging reach (Std Front) | 11720 mm |
| Max. digging depth (Std Front) | 7340 mm |
| Max. digging height (Std Front) | 10920 mm |
SPECIFICATIONS
| Engine Power | 394 HP |
| Bucket Capacity | 1.71 - 3.6m³ |
| Operating Weight | 50400 KG |
