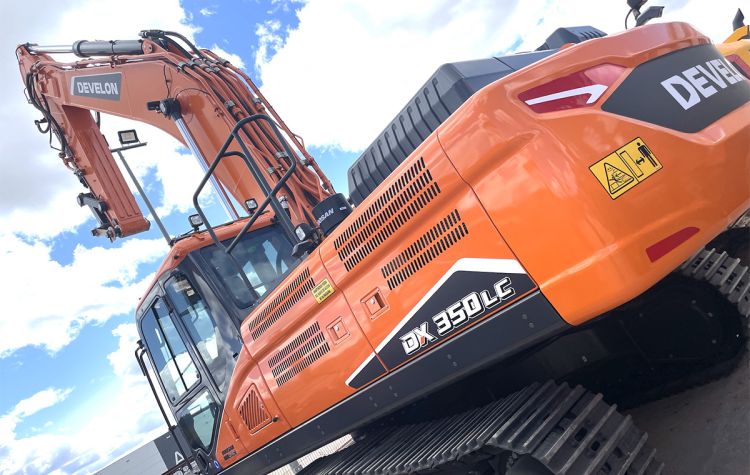

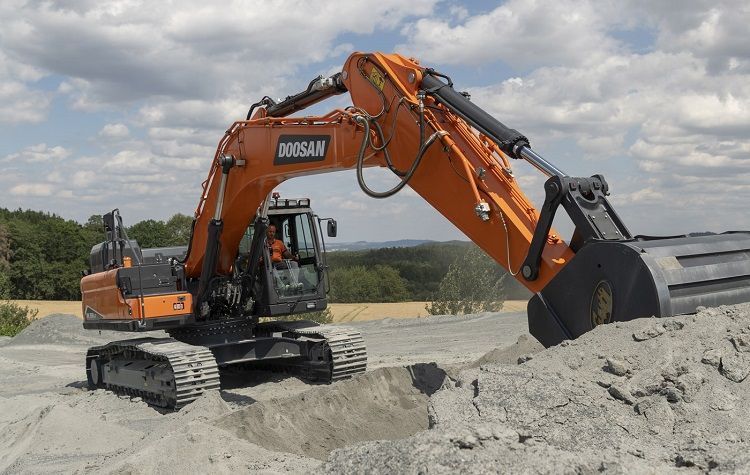

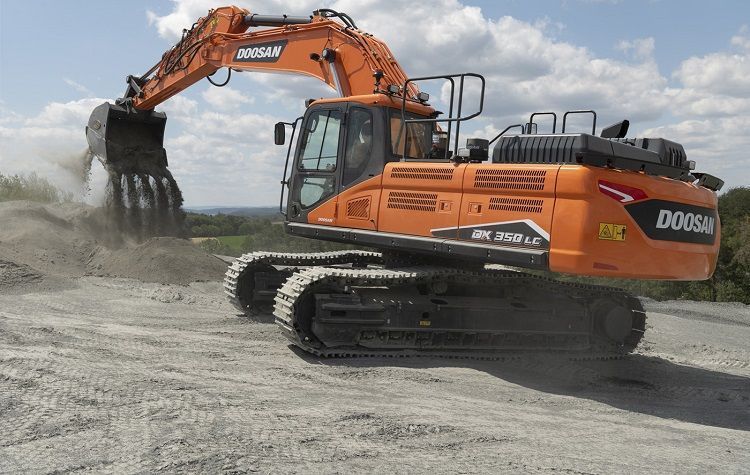

DevelonDX350LC-7K
The DX350LC-7 model features a new generation engine to meet the latest stage V engine emission regulations.
It is a new solution without exhaust gas recirculation to increase the quantity of air during combustion, the temperature during combustion is therefore higher and the amount of emission particles are reduced. Due to the new technology the diesel particle filter requires really low maintenance.
Specifications
| Operating weight | 36100 kg |
| Engine | DL08V |
| Engine power | 290hp |
| Main pumps max flow | 2 x 350 l/m |
| Number of cylinders | 6 |
| Travel speed | 3.4 / 5.6 km/h |
| Maximum traction | 37.9 ton |
| Buckets | 1.25 – 1.83 m³ |
| Sound level (internal / external) | 71 dB(A) - 105 dB(A) |
| Overall width | 3280 / 3000 mm (Narrow) |
| Overall height (Std Front) | 3390 mm |
| Overall length (Std Front) | 11315 mm |
| Tail swing radius | 3530 mm |
| Bucket digging force | 25.9 t |
| Arm digging force (Std Front) | 23.3 t |
| Max. digging reach (Std Front) | 12165 mm |
| Max. digging depth (Std Front) | 8125 mm |
| Max. digging height (Std Front) | 13175 mm |
SPECIFICATIONS
| Engine Power | 290HP |
| Operating Weight | 36100kg |
