DevelonDX800LC-7
MADE FOR THE TOUGHEST APPLICATIONS.

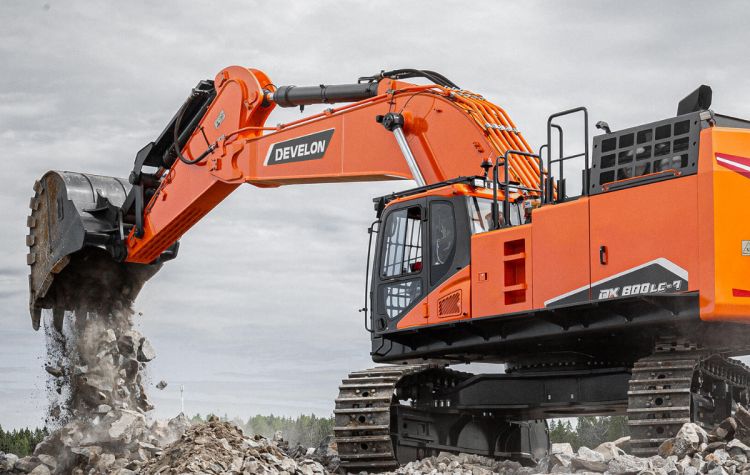

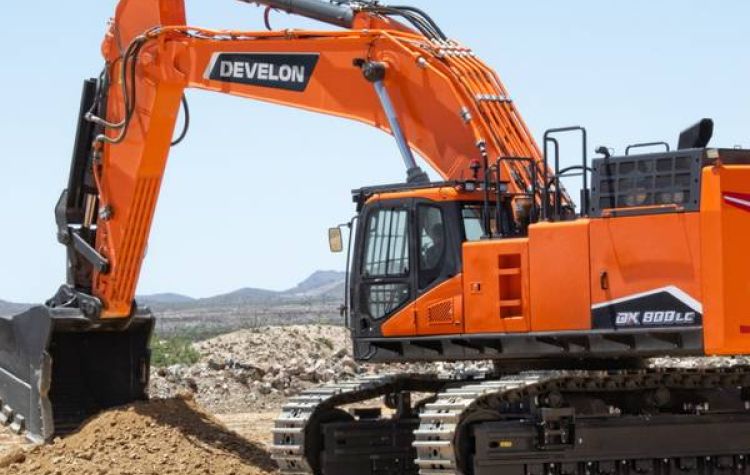

Lift your business to the next level with the DX800LC-7 Develon excavator.
Strong undercarriage and the highest engine power and hydraulic flow in the market with total control of the fuel consumption to offer the lowest possible cost per ton.
The DX800LC-7 excavator is powered by the new stage V version of the well proven Perkins 2506J diesel engine providing a high power output of 548hp more than any other machine in this class.
Specifications
| Operating Weight | 79500 kg |
| Engine | Perkins 2506J |
| Engine power | 548hp |
| Main pumps max flow | 2 x 504 l/m |
| Number of cylinders | 6 |
| Travel speed | 2.9 - 4.8 km/h |
| Maximum traction | 70.7 ton |
| Buckets | 4.25 - 5.24m 3 |
| Sound level (internal / external) | 70 dB(A) - 107 dB(A) |
| Overall width | 3560 mm |
| Overall height (Std Front) | 4865 mm |
| Overall length (Std Front) | 13370mm |
| Tail swing radius | 4010 mm |
| Bucket digging force | 39.8T |
| Arm digging force (Std Front) | 36.6T |
| Max. digging reach (Std Front) | 12925 mm |
| Max. digging depth (Std Front) | 7725 mm |
| Max. digging height (Std Front) | 11910 mm |
