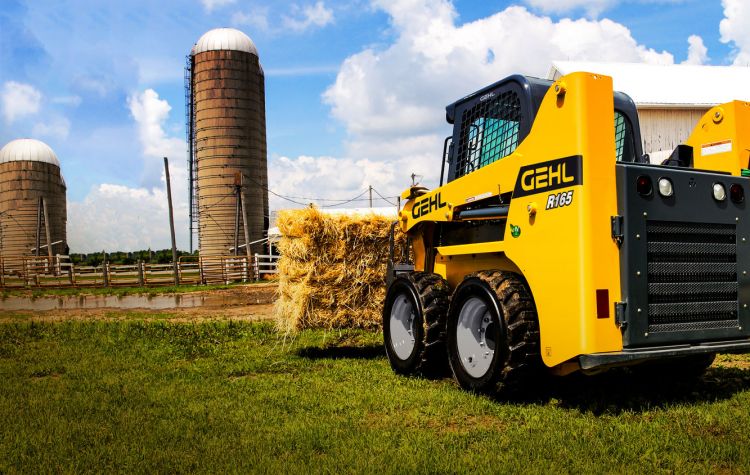

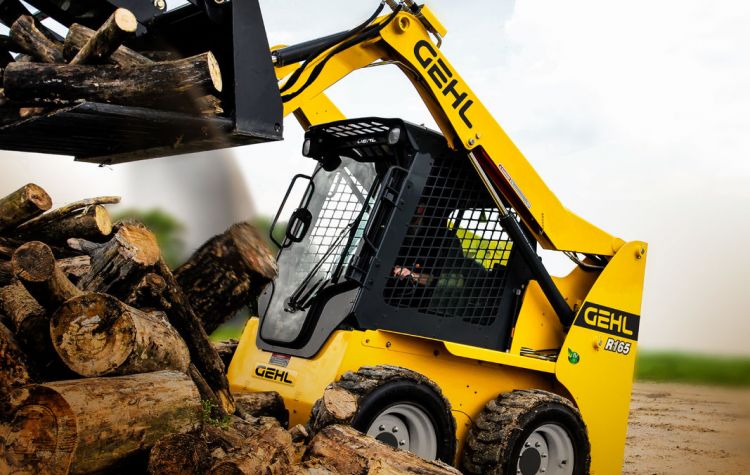

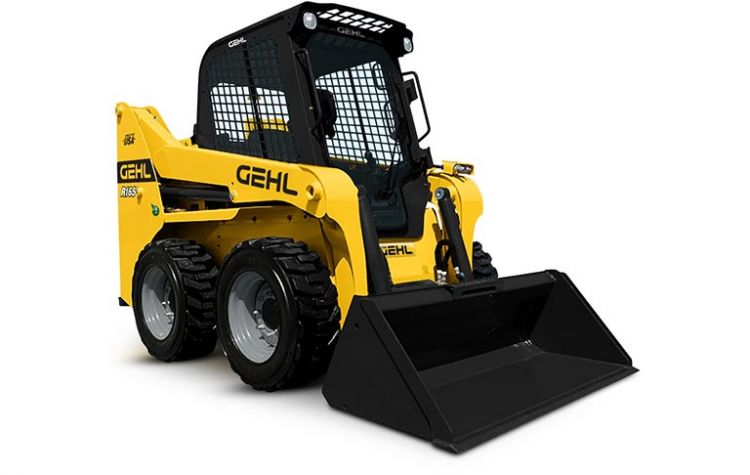

GehlGehl R165 Skid Loader
Rated Operating Capacity: 817 kg
Operating weight: 2796 kg
Power: 70 hp
Bucket Hinge Pin Height: 3023 mm
Specifications

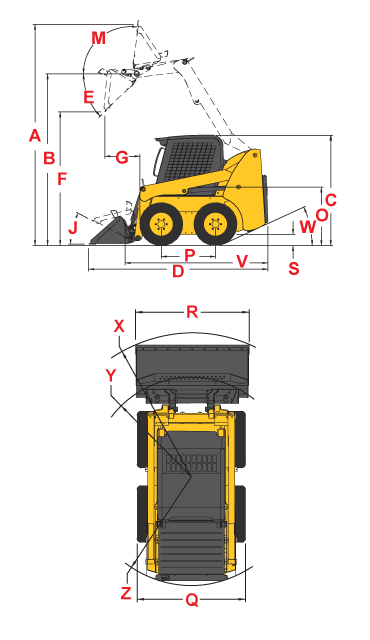

Dimensions |
|
|---|---|
| A Overall Operating Height - Fully Raised | 3876 mm |
| B Height to Hinge Pin - Fully Raised | 3018 mm |
| C Overall Height to Top of ROPS | 1948 mm |
| D Overall Length with Bucket | 3101 mm |
| E Dump Angle at Full Height | 38° |
| F Dump Height | 2380 mm |
| G Dump Reach at Full Height | 579 mm |
| J Rollback at Ground | 28° |
| M Rollback Angle at Full Height | 99° |
| O Seat to Ground Height | 904 mm |
| P Wheelbase | 988 mm |
| Q Overall Width - Less Bucket A | 1605 mm |
| R Bucket Width | 1562 mm |
| S Ground Clearance to Chassis | 160 mm |
| V Overall Length - Less Bucket | 2385 mm |
| W Departure Angle | 21° |
| X Clearance Circle – Front w/ Bucket | 1869 mm |
| Y Clearance Circle – Front w/o Bucket | 1153 mm |
| Z Clearance Circle – Rear | 1466 mm |
| Standard Specification Tire Size | 10.00 x 16.5 HD |
Engine |
|
| Make | Yanmar |
| Model | 4TNV98C-NMS2 Tier IV |
| Gross Power @ 2500 rpm | 51.7 kW |
| Net Power @ 2500 rpm | 51 kW |
| Maximum Torque | 178 Nm @ 1625 |
| Displacement | 3.3 L |
Hydraulic System |
|
| Auxiliary Hydraulics - Standard | 71.4 L/min |
| High-Flow Auxiliary Hydraulics - Option | Available |
| Reservoir Capacity | 41.6 L |
Electrical System |
|
| Battery | 950 CCA |
| Starter | 3.0 kW |
| Alternator | 100-amp |
Capacities/Weights |
|
| Rated Operating Capacity B | 748 kg |
| Rated Operating Capacity with Optional Counterweight B | 816.5 kg |
| Fuel Tank | 62.5 L |
| Travel Speed - Maximum | 12.6 km/hr |
| Travel Speed with Two-Speed Option - Maximum | 19.5 km/hr |
| Operating Weight C - Approximate | 2796 kg |
A - Overall width is dependent upon the amount of wheel offset.
B - Per SAE J818, SAE J732, and ISO 14397
C - Weight of base unit with standard equipment, standard tires (heavy-duty flotation), standard dirt-construction bucket and 79 kg operator.
