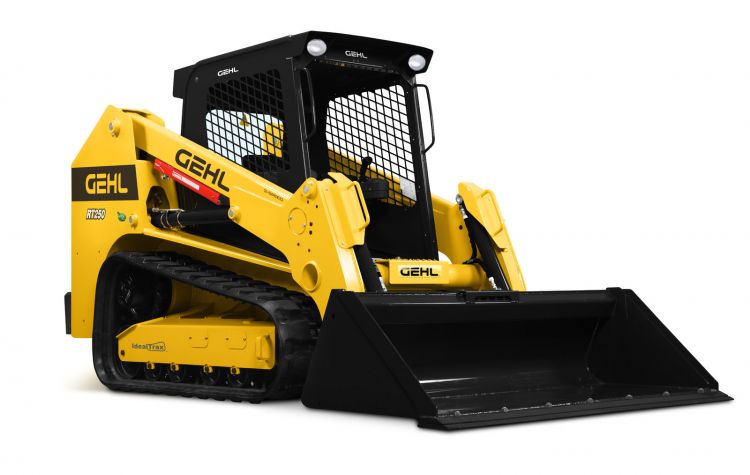

GehlGehl RT250 Track Loader
Rated Operating Capacity 35%: 1134 kg
Rated Operating Capacity 50%: 1620 kg
Tipping Load: 3240 kg
Operating weight: 5203 kg
Power: 74 Hp
Bucket Hinge Pin Height: 3251 mm
Specifications

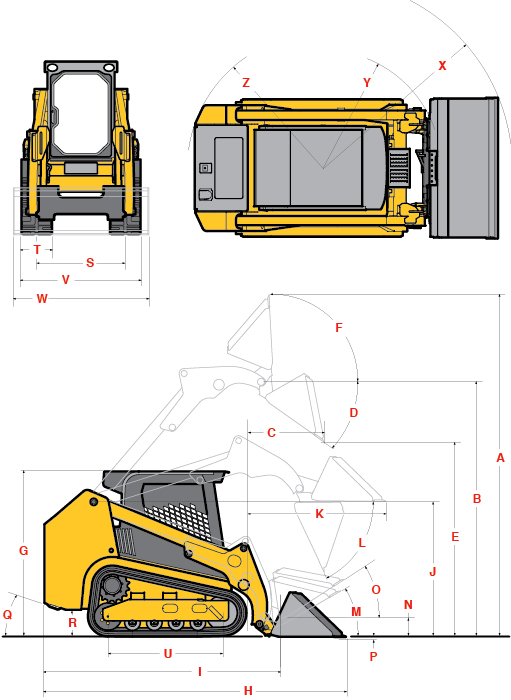

Dimensions |
|
|---|---|
| A Overall Operating Height - Fully Raised | 168" |
| B Height to Hinge Pin - Fully Raised | 128" |
| C Reach - Fully Raised | 34.5" |
| D Dump Angle - Fully Raised | 41° |
| E Dump Height - Fully Raised | 98" |
| F Maximum Rollback Angle - Fully Raised | 102.5° |
| G Overall Height at ROPS | 83.1" |
| H Overall Length with Bucket - Standard Counterweight | 157.8" |
| I Overall Length without Bucket - Standard Counterweight | 126.8" |
| J Specified Height | 67.7" |
| K Reach at Specified Height | 31.1" |
| L Dump Angle at Specified Height | 75° |
| M Maximum Rollback Angle at Ground | 30° |
| N Carry Position | 8.2" |
| O Maximum Rollback Angle at Carry Position | 31.6° |
| P Digging Position - Below Ground | +0.5" |
| Q Angle of Departure with Standard Counterweight | 25° |
| R Ground Clearance | 13.2" |
| S Track Gauge | 51.7" |
| T Track Shoe Width | 17.7" |
| U Crawler Base | 61.5" |
| V Overall Width - Less Bucket | 69.5" |
| W Bucket Width | 83.9" |
| X Clearance Radius - Front With Bucket | 98.4" |
| Z Clearance Radius - Rear with Standard Counterweight | 70.7" |
| Maximum Rollback at Specified Height | 66.8° |
| Angle of Approach | 90° |
| Grouser Height | 1" |
Capacity |
|
| Operating Capacity at 35% Tipping Load | 2,500 lbs. |
| Operating Capacity at 50% Tipping Load | 3,571 lbs. |
| Tipping Load | 7,143 lbs. |
| Operating Weight | 11,470 lbs. |
Engine |
|
| Make/Model | Deutz/TD 3.6 Tier 4 |
| Type | 4-Stroke Turbo |
| Displacement/Cylinders | 221 cu.in./4 |
| Gross Power @ rpm | 74.3 hp @ 2300 |
| Net Power @ rpm | 70.7 hp @ 2300 |
| Peak Torque @ rpm | 243 ft.-lbs. @ 1500 |
| Oil Pump Capacity | 9 qts. |
| Alternator Voltage/Amperage | 14V/95A |
Track Drives |
|
| Drawbar Pull/Tractive Effort | 12,770 lbs. |
| Track Type/Track Rollers/Roller Type | Rubber/5/Steel |
| Track Width | 17.7" |
| Ground Pressure | 5.3 psi |
Forces |
|
| Bucket Breakout - Tilt Cylinder | 8,384 lbs. |
| Bucket Breakout - Lift Cylinder | 7,437 lbs. |
| Ground Speed - Single Speed | 5.8 mph |
| Ground Speed - Two Speed | 8.2 mph |
Volume |
|
| Fuel Tank | 24 gal. |
| Hydraulic Reservior Tank | 13.8 gal. |
| Coolant Capacity | 5.1 gal. |
Hydraulics |
|
| Auxiliary Hydraulic Flow - Rated Speed | 24.9 gpm |
| High-Flow Hydraulic Flow - Rated Speed | 37.4 gpm |
| Transmission Pump Type | Axial Piston |
| Motor Type | Axial Piston with Planetary Gear Box Reduction |
Electronic System |
|
| Battery Volts | 12V |
| Cold Cranking Amps at Temperature | 950 CCA @ 0°F |
