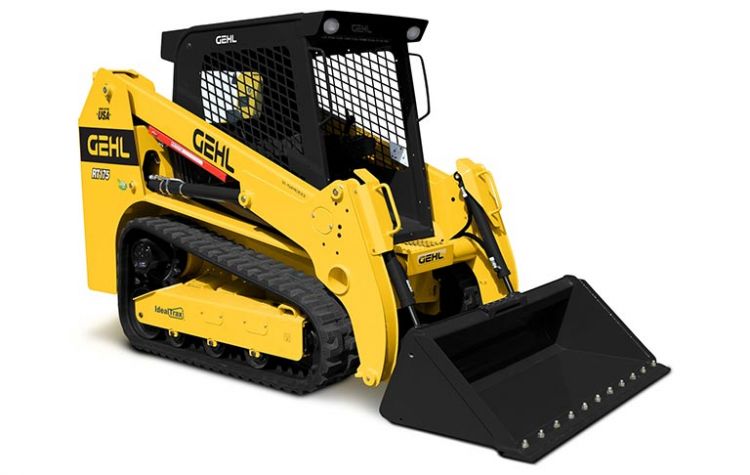

GehlGehl RT175 Track Loader

Rated Operating Capacity 35%: 794 kg

Rated Operating Capacity 50%: 1134 kg

Tipping Load: 2268 kg

Operating weight: 3903 kg

Power: 70 Hp

Bucket Hinge Pin Height: 3251 mm

Specifications

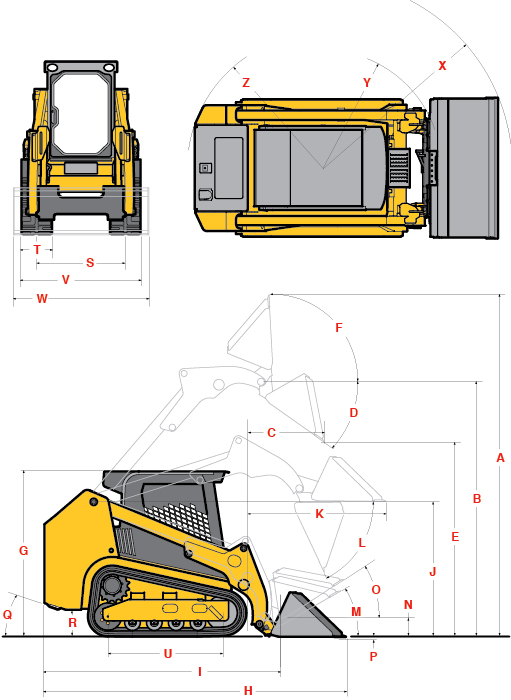

Dimensions

A  Overall Operating Height - Fully Raised 4267 mm
B  Height to Hinge Pin - Fully Raised 3251 mm
C  Reach - Fully Raised 876 mm
D  Dump Angle - Fully Raised 40.2°
E  Dump Height - Fully Raised 2489 mm
F  Maximum Rollback Angle - Fully Raised 102.5°
G  Overall Height at ROPS 2103 mm
H  Overall Length with Bucket - Standard Counterweight 3658 mm
I  Overall Length without Bucket - Standard Counterweight 2814 mm
J  Specified Height 1715 mm
K  Reach at Specified Height 790 mm
L  Dump Angle at Specified Height 75°
M  Maximum Rollback Angle at Ground 30°
N  Carry Position 208 mm
O  Maximum Rollback Angle at Carry Position 31.6°
P  Digging Position - Below Ground 23 mm
Q  Angle of Departure with Standard Counterweight 30.4°
R  Ground Clearance 333 mm
S  Track Gauge 1313 mm
T  Track Shoe Width 320 mm
U  Crawler Base 1392 mm
V  Overall Width - Less Bucket 1636 mm
W  Bucket Width 1674 mm
X  Clearance Radius - Front With Bucket 2322 mm
Z  Clearance Radius - Rear with Standard Counterweight 1577 mm
Maximum Rollback at Specified Height  66.8°
Angle of Approach 90°
Grouser Height 25 mm

Capacity

Operating Capacity at 35% Tipping Load 794 kg
Operating Capacity at 50% Tipping Load 1134 kg
Tipping Load 2268 kg
Operating Weight 3903 kg

Engine

Make/Model Yanmar/4TNV98C-NMSL Tier IV
Type 4-Stroke Naturally Aspirated
Displacement/Cylinders 3.3 L/4
Gross Power @ rpm 52.1 kW @ 2500
Net Power @ rpm 51 kW @ 2500
Peak Torque @ rpm 242.7 Nm @ 1600
Oil Pump Capacity 10.4 L
Alternator Voltage/Amperage 14V/95A

Track Drives

Drawbar Pull/Tractive Effort 4,498 kg
Track Type/Track Rollers/Roller Type Rubber/4/Steel
Track Width 320 mm
Ground Pressure 0.43 bar

Forces

Bucket Breakout - Tilt Cylinder 2429 kg
Bucket Breakout - Lift Cylinder 2275 kg
Ground Speed - Single Speed 8.5 km/hr
Ground Speed - Two Speed 12.4 km/hr

Volume

Fuel Tank 91 L
Hydraulic Reservior Tank 41.6 L
Coolant Capacity 13.3 L

Hydraulics

Auxiliary Hydraulic Flow - Rated Speed 70.0 L/min
High-Flow Hydraulic Flow - Rated Speed 128.8 L/min
Transmission Pump Type Axial Piston
Motor Type Axial Piston with Planetary Gear Box Reduction

Electronic System

Battery Volts 12V
Cold Cranking Amps at Temperature 850 CCA @ -18°C
