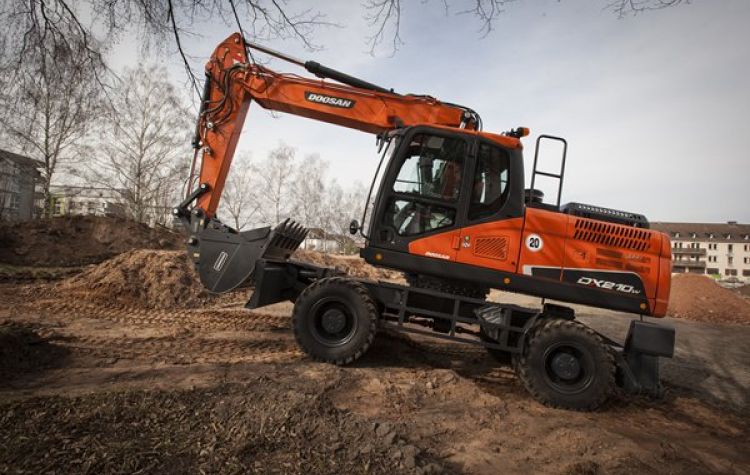

DoosanDX210W-5

The new, Stage IV compliant, DX210W-5 incorporates the previous “-3” improvements and significantly increases performance levels yet again. Fuel consumption has been lowered by 10% compared to the previous generation. The engine is the legendary DL06P – one of the most reliable & fuel-efficient 6-cylinder engines DOOSAN has ever designed (with EGR/SCR & DPF-free emission treatment technologies). And the features offered as standard in the already outstanding cab are among the best in the market: outstanding comfort, ease-of-operation thanks to extra ergonomics, super controllability with short & low stroke joysticks, fully automatic climate control system, and much more.

Specifications

Operating Weight 20,800 - 21,700 kg
Engine Doosan DL06P
Engine power 141.2 kW / 189.3 HP @ 1900 rpm
Main pumps max flow 2 x 236 l/min
Number of cylinders 6
Travel speed (High / Eco / Low / Creep) 35 / 33 / 9 / 4 km/h
Maximum traction force 210 - 12 Ton
Buckets 0.51 - 1.49 m3
Sound level (internal / external) 70 dB(A) - 101 dB(A)
Overall width 2530 mm
Overall height (Mono / Arti boom) 3590 mm / 3265 mm
Overall length (Mono / Arti boom) 9430 mm / 9225 mm
Tail swing radius 2755 mm
Bucket digging force 13.4 Ton
Arm digging force (Std Front) 11.5 Ton
Max. digging reach (Mono / Arti boom) 9980 mm / 9385 mm
Max. digging depth (Mono / Arti boom) 6160 mm / 5605 mm
Max. digging height (Mono / Arti boom) 10140 mm / 10435 mm
