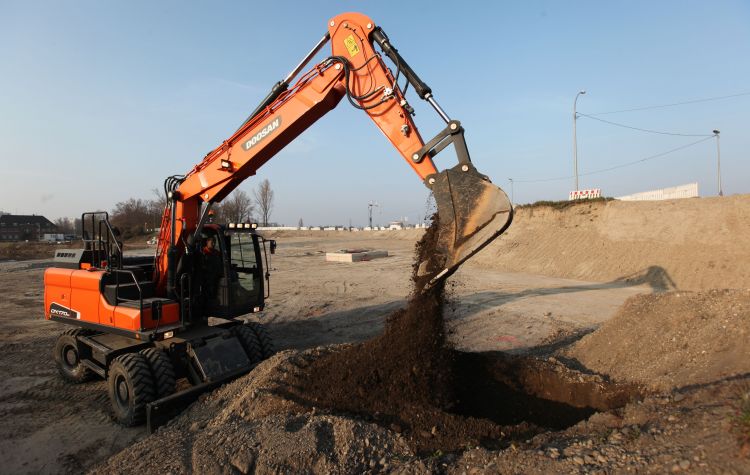

DoosanDX170W-5

The new, Stage IV compliant, DX170W-5 Wheeled Excavator incorporates the previous “-3” improvements and adds significant new features, including: a state-of-the-art TMS wireless fleet monitoring system; the legendary DL06P – one of the most reliable & fuel-efficient 6-cylinder engines DOOSAN has ever designed (with EGR/SCR & DPF-free emission treatment technologies); and even further refinements to the already outstanding cab: exclusive jog shuttle switch, fully automatic climate control system, more storage compartments for paperwork and other items, and much more.

Specifications

Operating weight 16,800 - 18,300 kg
Engine Doosan DL06P
Engine power 113.3 kW / 151.9 HP at 2000 RPM
Main pumps max flow 2 x 170 l/min
Number of cylinders 6
Travel speed (High / Low / Creep) 37 / 10 / 3 km/h
Maximum traction force 170 – 10 ton
Buckets 0.32 - 0.90 m³
Sound level (internal / external) 70 dB(A) / 102 dB(A)
Overall width 2500 mm
Tail swing radius 2795 mm
Overall height (Mono / Arti boom) 3,098 mm / 3,136 mm
Overall length (Mono / Arti boom) 8,219 mm / 8,320 mm
Bucket digging force 11.6/12.3 t
Arm digging force (Std Front) 8.2/8.6 t
Max. digging reach (Mono / Arti boom) 8,875 mm / 9,090 mm
Max. digging depth (Mono / Arti boom) 5,315 mm / 5,745 mm
Max. digging height (Mono / Arti boom) 9,140 mm / 10,045 mm
