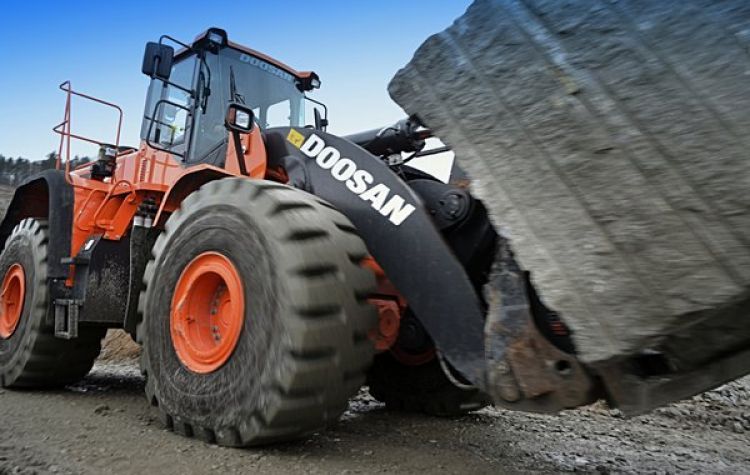

DoosanDL580-5

The DL580-5’s overall size is almost the same as the DL550-5, but the new model is equipped with a series of features that make the machine extremely reliable and durable. The robustness of structural components, hydraulic parts and the sophisticated double circuit axle cooling system give you the right solution for any heavy application you need to handle.

Powerfull Scania DC13, 6 cylinder, 12,7 liters diesel engine, automatic 5 speed powershift transmision, heavy duty cooled axles and reinforced Z-bar kinematic, provides you solition for the heviest job needs to be done.

Specifications

Operating weight 36030 kg
Bucket capacity 5.7 m3
Engine type Scania DC13, Turbo-charged, 12.7 l displacement
Rated engine performance (SAE J1995 gross) 380 HP (283 kW) @ 1800 rpm
Max. torque at rpm 1,765 Nm @ 1,300 rpm
Breakout force 225 kN
Static tipping load (straight / 40°) 29,700/ 26,200 kg
Std. tyres 29.5 R25 (L5)
Turning radius (tyre edge / bucket edge) 6,550 / 7,544 mm
Height at bucket pivot point mm 4780 mm
