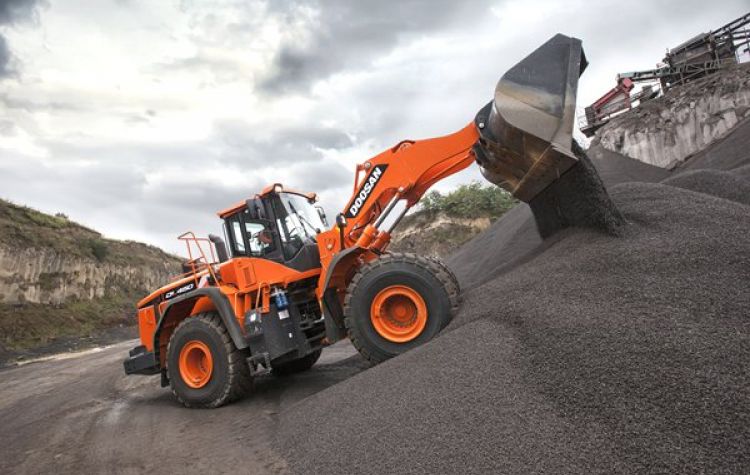

You can count on the Doosan DL450-5 wheel loader to handle even the biggest amounts of material. This machine’s size is particularly useful for handling granular materials – such as sand and gravel – in industrial, mining and quarrying applications. And it’s an ideal machine for infrastructure applications too.

The standard Z-bar lift arm design minimises spillage while increasing productivity. Designed for heavy loads, the lifting geometry has fewer moving parts and precise positioning in all situations. Unload sticky or wet materials with the rapid bucket dump capabilities; and ensure gradual, precise control with the load sensitive control system.

The powerful hydraulic system shortens cycle times, and the Automatic Hydraulic differentials Lock help you work with confidence in soft or muddy conditions. Doosan Telematics monitor your Doosan heavy equipment and manage maintenance to reduce operating costs.


Operating Weight 25,730 kg
Engine Scania DC13
Engine power 257 kW (345 HP) @ 1800 rpm (SAE J1995)
Main pumps max flow 476 l/min
Number of cylinders 6
Travel speed 38 km/h
Maximum traction 23.6 ton
Buckets 4.5-5 m3
Sound level (internal / external) 72 dB(A) - 104 dB(A)
Overall width 3,300 mm
Overall height N/A
Overall length 9,340 mm
Breakout force 231 kN


Tipping Weight 20.6
Engine Power 257 kW / 345 HP
Bucket Capacity (SAE heaped, m³) 4.8
