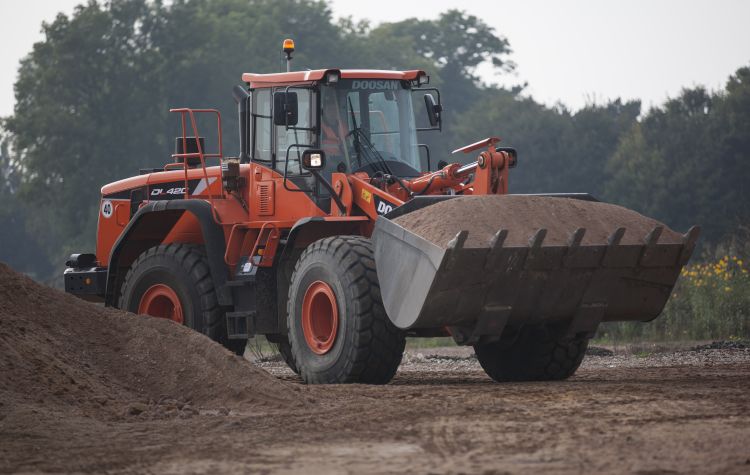

DoosanDL420-5

Powered by a powerful Stage IV diesel engine, the DL420-5 wheel loader penetrates tough materials, tilts and lifts with ease, and carries more in every cycle. Performance features include a powershift transmission with optimised hydraulic pumps, multiple engine power modes, Z-bar lift arm, automatic return to dig, and limited slip differentials on both front and rear axles.

Doosan’s DL-5 Series Wheel Loaders are powered by the renowned Scania 9L & 13L engines designed for industrial engine segments, with long uptime, generous torque at low rpm, good fuel economy and excellent engine response.

Specifications

Operating Weight 22,930 kg
Bucket capacity 4.2 m3
Engine type Scania DC13, Turbo-charged, 12.7 l displacement
Rated engine performance (SAE J1995 gross) 257 kW (345 HP) at 1800 rpm
Max. torque at rpm 1,600 Nm @ 1,300 rpm
Breakout force 210 kN
Static tipping load (straight / 40°) 18,400 / 16,250 kg
Std. tyres 26.5 R25 (L3)
Turning radius (tyre edge / bucket edge) 6,570 / 6,380 mm
Height at bucket pivot point mm 4,280 mm

SPECIFICATIONS

Tipping Weight 100KG
Engine Power 200
