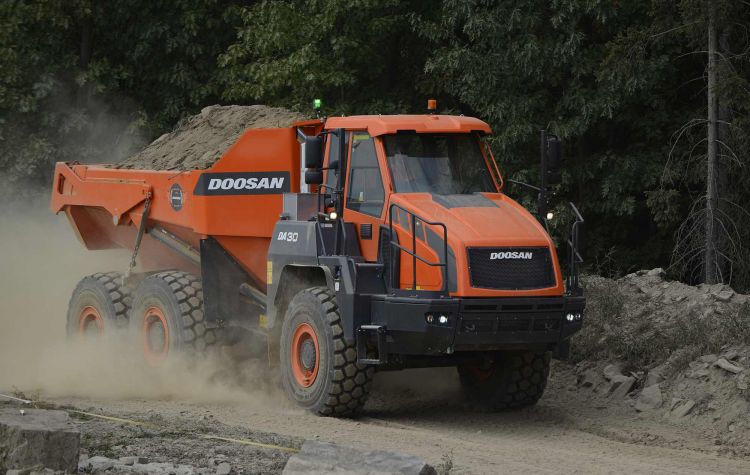

DoosanDA30

With a payload of 28 metric tons, the DA30 is designed to meet on-road as well as off-road requirements to handle a wide variety of earth-moving applications in the most challenging ground conditions. Whatever the work situation, the DA30’s new spacious cab offers superior operator comfort with low noise levels and modern convenient controls. A scissor-type tailgate is standard.

Productivity : the DA30 offers best-in-class ground clearance & ground bearing pressure. Combined with superior torque at low engine RPM, excellent power and traction, we offer you the best productivity.

Specifications


  • Engine                               Scania DC9
  • Configuration                       5 in line cyl / 9.3 l
  • Gross power                        370 HP (276 kW) @ 2,100 RPM
  • Net power                           362 HP (270 kW) @ 2,100 RPM
  • Gross torque                      1,873 Nm @ 1,300 RPM
  • Body volume (SAE 2:1)       16.8 m³
  • Density index (SAE 2:1)      1.64 t/m³
  • Gross weight (SAE 2:1)       51,400 kg
  • Net weight (SAE 2:1)           23,400 kg
  • Power to weight, empty       12.1 kW/t
  • Power to weight, loaded      5.47 kW/t
  • Transmission                     ZF 8 EP320 countershaft
  • Speeds                             8F / 4R
  • Max. travel speed forward (1 / 2 / 3 / 4 / 5 / 6 / 7 / 8)       5 / 8 / 11 / 15 / 22 / 30 / 42 / 55 km/h
  • Brakes front                      Wet disc
  • Brakes rear                       Wet disc
  • Retarder                           Exhaust brake and transmission retarder
  • Body (floor - side - front)    400 BN (12 - 10 - 8 mm)
  • Total length                       9558 mm
  • Width                               2990 mm
  • Load over height               3560 mm
  • Turning radius ISO 7457    7680 mm
