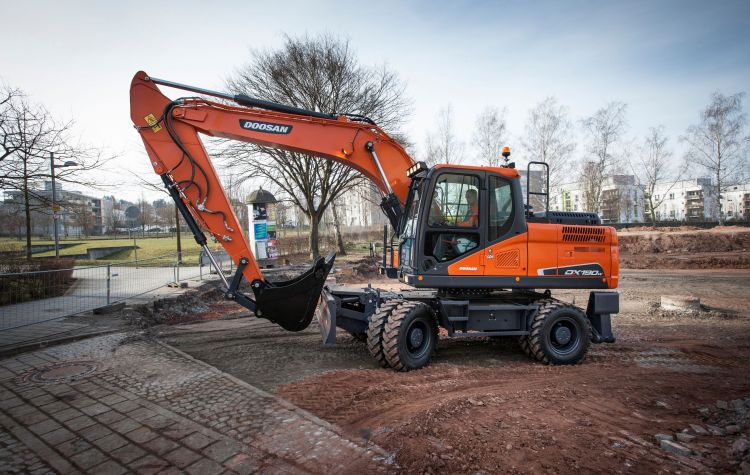

From road and street construction, to digging trenches and breaking materials, to site preparation for laying foundations or installing utilities, the DX190W-5 offers outstanding multi-task capabilities − combining productivity, power, lifting and digging capacities with the ability to travel from one site to another at up to 35 km/h.

A range of configurations and options are available to meet a variety of needs: single or tandem tyres, monobloc or articulated boom, dozer blade, stabilizers, and a variety of attachments.

From the standpoint of performance, the DX190W-5 has 7% more traction force compared to the previous generation model; the engine torque has been increased by 5%; fuel consumption has been reduced by an average of 10%, and lifting capacities have increased on average by 4% (front/side).


Operating weight 18,900 kg
Engine Doosan DL06KB
Engine power 129.4 kW / 174 HP at 1900 rpm
Main pumps max flow 2 x 200 l/min
Number of cylinders 6
Travel speed (High / Low / Creep) 35 / 8.5 / 3 km/h
Maximum traction force 11.6 t
Buckets 0.38 - 0.93 m3
Sound level (internal / external) 70 dB(A) / 100 dB(A)
Overall width 2534 mm
Tail swing radius 2555 mm
Overall height (Mono / Arti boom) 3134 mm / 3190 mm
Overall length (Mono / Arti boom) 8750 mm / 9070 mm
Bucket digging force 12.1
Arm digging force (Std Front) 10.2 t
Max. digging reach (Mono / Arti boom) 9255 mm / 9645 mm
Max. digging depth (Mono / Arti boom) 5725 mm / 5915 mm
