Doosan’s DL-5 Series Wheel Loaders are powered by the renowned Scania 9L & 13L engines designed for industrial engine segments, with long uptime, generous torque at low rpm, good fuel economy and excellent engine response.

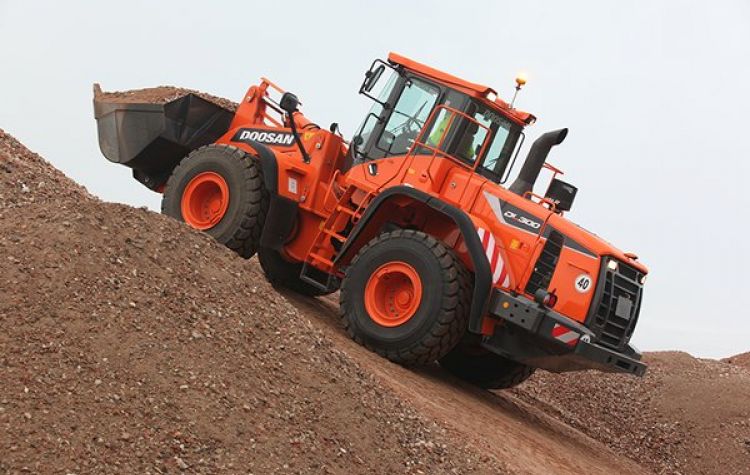

The DL300-5 wheel loader is a big, agile and smooth performer for a variety of mid-size applications. It's ideal for aggregates projects and versatiles job sites where you need to move more material every hour.


Operating weight 18,865 kg
Bucket capacity 3.0 m3
Engine type Scania DC09, Turbo-charged, 9.3 l displacement
Rated engine performance (SAE J1995 gross) 202 kW (271 HP) at 1800 rpm
Max. torque at RPM 1,275 Nm @ 1,400 RPM
Breakout force 169 kN
Static tipping load (straight / at full turn) 15.5 / 13.7 ton (full turn)
Std. tyres 23.5 R25 (L3)
Turning radius (tyre side / bucket edge) 5,800 / 5,970 mm
Height at bucket pivot point mm 3,975 mm


Tipping Weight 15.5
Engine Power 202 kW / 271 HP
Bucket Capacity (SAE heaped, m³) 3.0
